Opis:

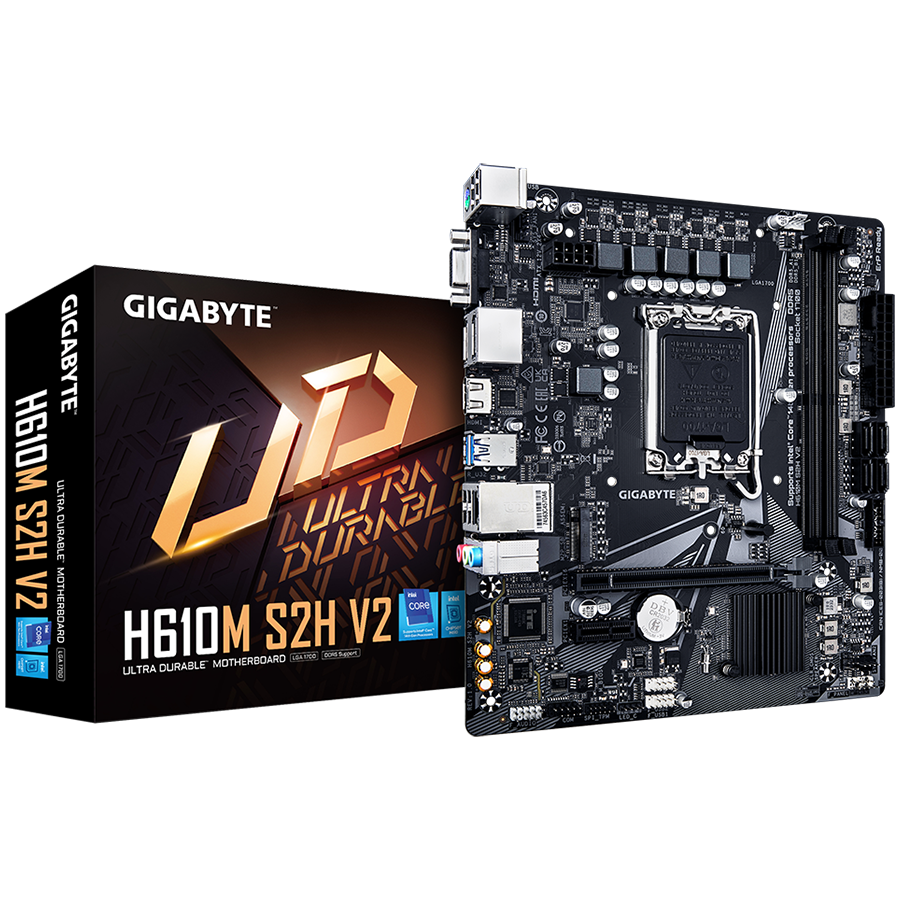

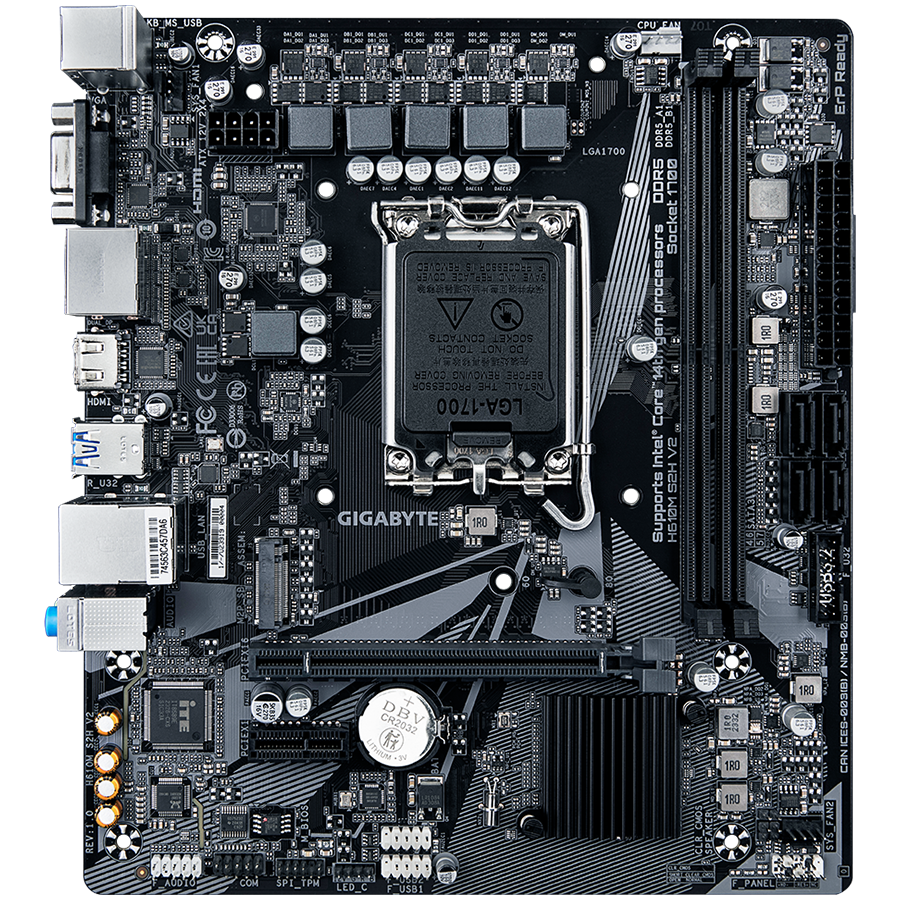

GIGABYTE MB H610M S2H V2 (LGA 1700, 2x DDR5 up to 64GB, 1x PCI-E x16x16, 1x PCI-Ex1, 4x SATA, 1x M.2, 4x USB 3.2 Gen1, 4x USB 2.0/1.1, internal 4x USB 2.0/1.1, 1x HDMI 2.0, 1x DP, Realtek GbE LAN 1Gbps/100Mbps, mATX, Retail)
Karakteristike:
GIGABYTE MB H610M S2H V2 (LGA 1700, 2x DDR5 up to 64GB, 1x PCI-E x16x16, 1x PCI-Ex1, 4x SATA, 1x M.2, 4x USB 3.2 Gen1, 4x USB 2.0/1.1, internal 4x USB 2.0/1.1, 1x HDMI 2.0, 1x DP, Realtek GbE LAN 1Gbps/100Mbps, mATX, Retail)
| Tehničke karakteristike |
|
|
Chipset:
|
Intel H610
|
|
Supports Central Processor Unit:
|
Intel 12th Gen Processors
Intel 13th Gen Processors
Intel 14th Gen Processors
|
|
CPU podnoĹľje:
|
Socket 1700
|
|
CPU Maximum Quantity Supports:
|
1
|
|
Vrsta memorije:
|
DDR5 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
5600MHz(PC5-44800)
|
|
Maximum Installable System Memory Storage Capacity:
|
96 GB
|
|
Memory Slot Total Quantity:
|
2
|
|
Provides Error Checking Method:
|
non-ECC
|
|
Memory Features:
|
Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
|
|
Integrated:
|
Storage Controller:
SATA III-600 (4)
Storage Controller:
PCI Express 3.0 x4 (1 x M.2 (Key M))
|
|
Video Controller Integrated:
|
yes
|
|
Video Chipset:
|
Intel HD Graphics
|
|
Audio Integrated:
|
yes
|
|
Device Location:
|
Integrated
|
|
Audio Output Mode:
|
7.1 Channel Surround
|
|
Compliant Audio Standards:
|
High Definition Audio
|
|
LAN Integrated:
|
yes
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
PCI Express 4.0 x16:
|
1
|
|
PCI Express 3.0 x1:
|
1
|
|

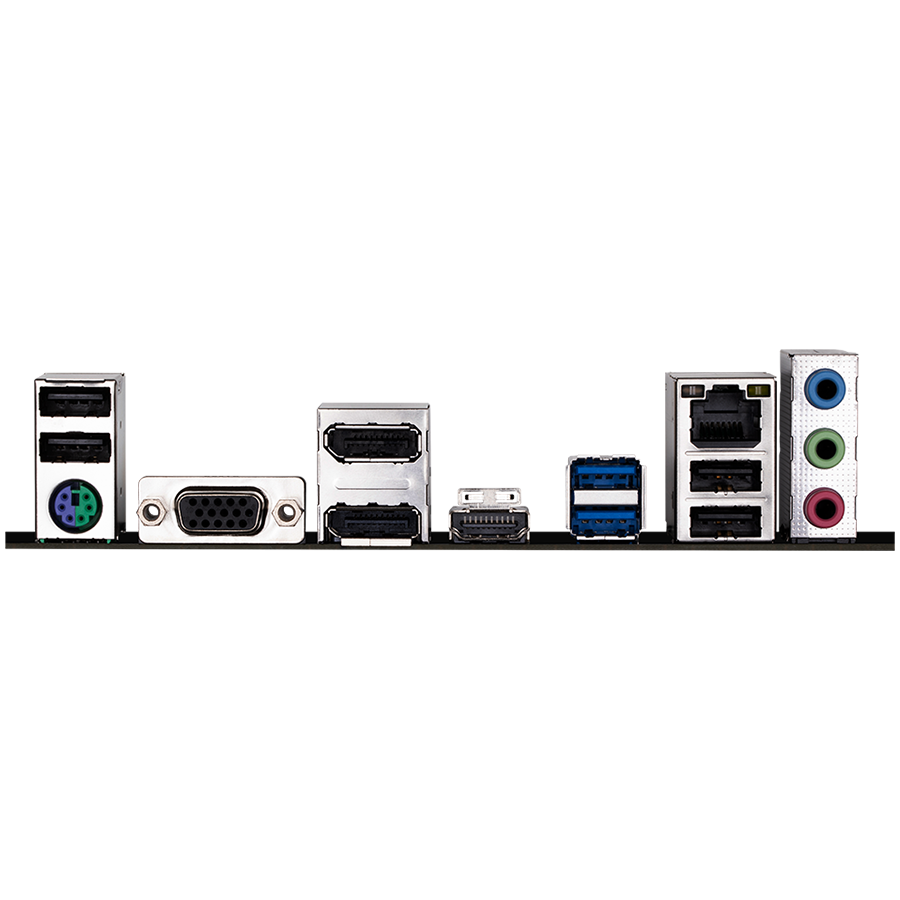

USB 3.2 Gen 1:
|
2 (USB 3.2 (type A))
|
|
USB 2.0:
|
4 (USB 2.0 (type A))
|
|
HDMI:
|
1 (HDMI (Type A))
|
|
LAN:
|
1 (RJ-45)
|
|
Audio Interface:
|
3 (3.5-mm minijack)
|
|
PS/2:
|
1
|
|
VGA:
|
1 (15-pin D-sub)
|
|
DisplayPort:
|
2
|
|
BIOS Type:
|
AMI
|
|
BIOS Features:
|
Gigabyte @BIOS
Gigabyte Q-Flash
Gigabyte Xpress Install
WfM 2.0 Support
Gigabyte EasyTune
PnP 1.0a Support
UEFI
SMBIOS 2.7 Support
PXE boot
128 Mb Flash ROM
DMI 2.7 Support
ACPI 5.0 Support
|
|
Wake up/Sleep:
|
Wake on LAN
|
|
Mainboard Features:
|
Fan Speed Control
RGB LED
|
|
Software Included:
|
Norton Internet Security (OEM version)
|
|
Supported Operating System:
|
Microsoft Windows 10 64-bit
Microsoft Windows 11 64-bit
|
|
Included Accessories:
|
Quick Start Guide
|
|
Form Factor:
|
Micro ATX
|
|
Height (mm):
|
196 mm
|
|
Width (mm):
|
223 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Pack Weight Brutto (kg):
|
0.8 kg
|
|
Pack Weight Netto (kg):
|
0.7 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
10 kg
|
|
Retail Packaging Net Weight Carton:
|
0.1 kg
|
|
Retail Packaging Net Weight Plastic:
|
0.1 kg
|
|
Packs in Box:
|
10
|
|
Package Type:
|
Retail
|
|
EAN Code:
|
4719331859817
|
Datum dodavanja u katalog:
15.3.2024. 16:01:09
