Opis:

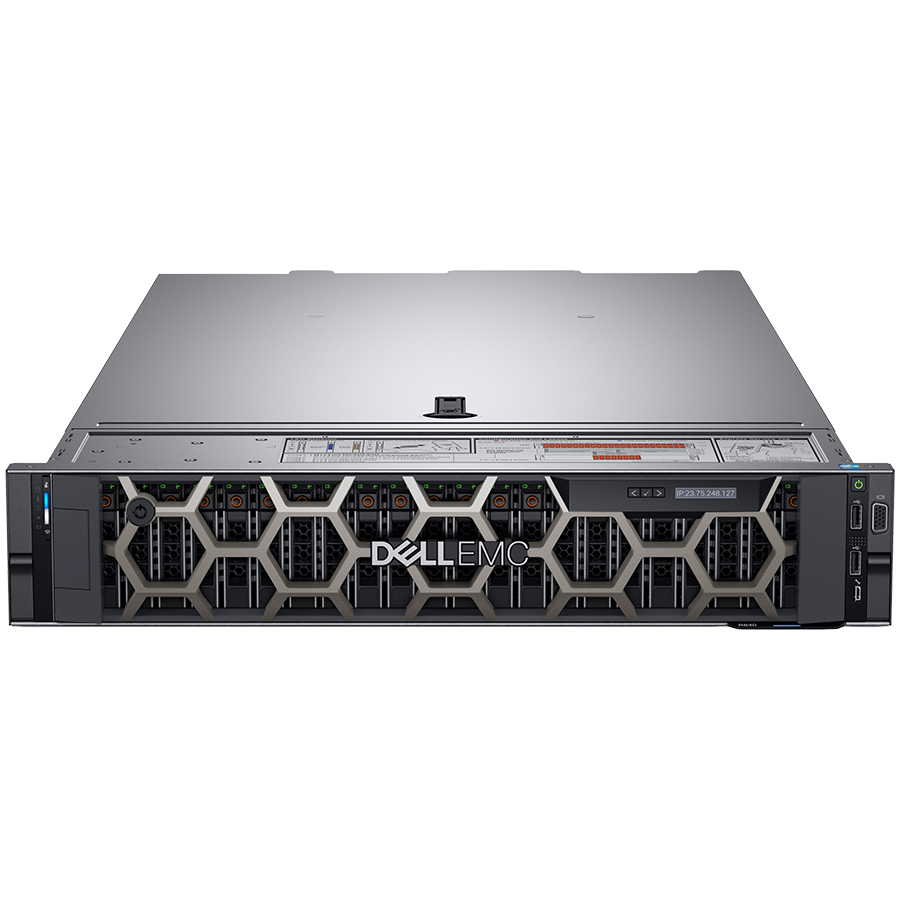

DELL EMC PowerEdge R550, 16x2.5", Intel XS 4309Y (2.8G, 8C/16T, 10.4GT/s, 12MB, Turbo, HT (105W)), 16GB RDIMM 3200MT/s, 480GB SSD SATA HP, PERC H755, iDRAC9 Enterprise, Dual RPS 1100W, TPM 2.0 V3, BCM 57412 DP, Sliding Rails, 3Y NBD
Karakteristike:
DELL EMC PowerEdge R550, 16x2.5", Intel XS 4309Y (2.8G, 8C/16T, 10.4GT/s, 12MB, Turbo, HT (105W)), 16GB RDIMM 3200MT/s, 480GB SSD SATA HP, PERC H755, iDRAC9 Enterprise, Dual RPS 1100W, TPM 2.0 V3, BCM 57412 DP, Sliding Rails, 3Y NBD
| Tehničke karakteristike |
|
|
Series:
|
PowerEdge
|
|
Model:
|
PowerEdge R550
|
|
System Type:
|
Server
|
|
System Form Factor:
|
Rack-Mountable
|
|
Included Accessories:
|
Rails
|
|
Supported CPUs:
|
Xeon Scalable Processors
|
|
CPU:
|
Intel Xeon Silver 4309Y Processor
|
|
Internal Clock Rate:
|
2.8 GHz (up to 3.6 GHz)
|
|
CPU Core Quantity:
|
8
|
|
Threads Quantity:
|
16
|
|
Max. CPU Bus Clock Rate:
|
10.4 GT/sec
|
|
CPU podnoĹľje:
|
Socket 4189
|
|
CPU Installed Quantity:
|
1
|
|
CPU Maximum Quantity Supports:
|
2
|
|
CPU Cache Size:
|
12 MB
|
|
Features:
|
Supports 10 nm Processors
|
|
Quantity of Mainboards Supported:
|
1
|
|
Vrsta memorije:
|
DDR4 SDRAM
|
|
Memory Form Factor:
|
DIMM 288-pin
|
|
Memory Speed:
|
3200MHz(PC4-25600)
|
|
Provides Error Checking Method:
|
ECC
|
|
Memory Capacity:
|
16 GB
|
|
Maximum Installable System Memory Storage Capacity:
|
1 TB
|
|
Memory Slot Total Quantity:
|
16
|
|
Memory Features:
|
Registered
|
|
Plug-in-card:
|
RAID Controller:
PERC H755 8 GB
Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60
SAS/SATA (2 x SFF-8654 (SlimSAS))
Remote Management Controller:
iDRAC9 Enterprise
|
|
SSD:
|
480 GB, SATA III-600, Hot-Swap
|
|
Maximum Fans Supported Quantity:
|
5 count
|
|
Networking Form Factor:
|
Integrated
|
|
LAN:
|
Gigabit Ethernet
|
|
Data Link Protocol Supports:
|
Gigabit Ethernet/Fast Ethernet/Ethernet
|
|
Network:
|
Plug-in-card: 10 Gbps (Broadcom BCM57412)
|
|
Number of 2.5-inch Hot-Swap Drive Bays:
|
16
|
|
USB 2.0:
|
2 (USB 2.0 (type A))
|
|
USB 3.0:
|
1 (USB 3.0 (Type A))
|
|
VGA:
|
2 (15-pin D-sub)
|
|
LAN:
|
2 (RJ-45)
|
|
SFP+:
|
2
|
|
Power Device Type:
|
Power Supply - redundant
|
|
Power Device Location:
|
Internal
|
|
Input Voltage:
|
AC 100-240 V
|
|
Input Frequency:
|
50/60 Hz
|
|
Power Device Installed Quantity:
|
2; Redundant (1+1)
|
|
Power Device Maximum Quantity Supports:
|
2
|
|
Maximum Output Power:
|
1100 W
|
|
External Color:
|
Black
|
|
Mounting Capability:
|
Rackmount
|
|
Standard Rack Height:
|
2 U
|
|
Included Accessories:
|
Rails
|
|
Maximum Operating Ambient Temperature:
|
35 °C
|
|
Minimum Operating Ambient Temperature:
|
10 °C
|
|
Maximum Non-Operating Ambient Temperature:
|
65 °C
|
|
Minimum Non-Operating Ambient Temperature:
|
-40 °C
|
|
Maximum Non-Operating Humidity:
|
95 %
|
|
Minimum Non-Operating Humidity:
|
5 %
|
|
Max. Altitude Operating:
|
3048 m
|
|
Max. Altitude Storage:
|
12000 m
|
|
Height (mm):
|
86.8 mm
|
|
Depth (mm):
|
685.78 mm
|
|
Width (mm):
|
482 mm
|
|
Warranty Products Returnable:
|
Yes
|
|
Warranty Term (month):
|
36 month(s)
|
|
Warranty validation Criteria:
|
Serial Number
|
|
Warranty Term Notes:
|
Next Business Day
|
|
Pack Weight Brutto (kg):
|
25.1 kg
|
|
Pack Weight Netto (kg):
|
21 kg
|
|
Pieces in pack:
|
1
|
|
Box Weight Brutto (kg):
|
25.1 kg
|
|
Retail Packaging Net Weight Carton:
|
2.3 kg
|
|
Retail Packaging Net Weight Plastic:
|
1.8 kg
|
|
Packs in Box:
|
1
|
|
Package Type:
|
Box
|
Datum dodavanja u katalog:
11.8.2024. 19:04:15
