| Tehničke karakteristike |
|
|
Model:
|
RT-BE86U
|
|
Priključci:
|
1 x 10G for WAN/LAN
1 x 2.5G for WAN/LAN
3 x 2.5G for LAN
USB 3.2 Gen1 x1
USB 2.0 Gen1 x1
|
|
Protokol:
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
|
|

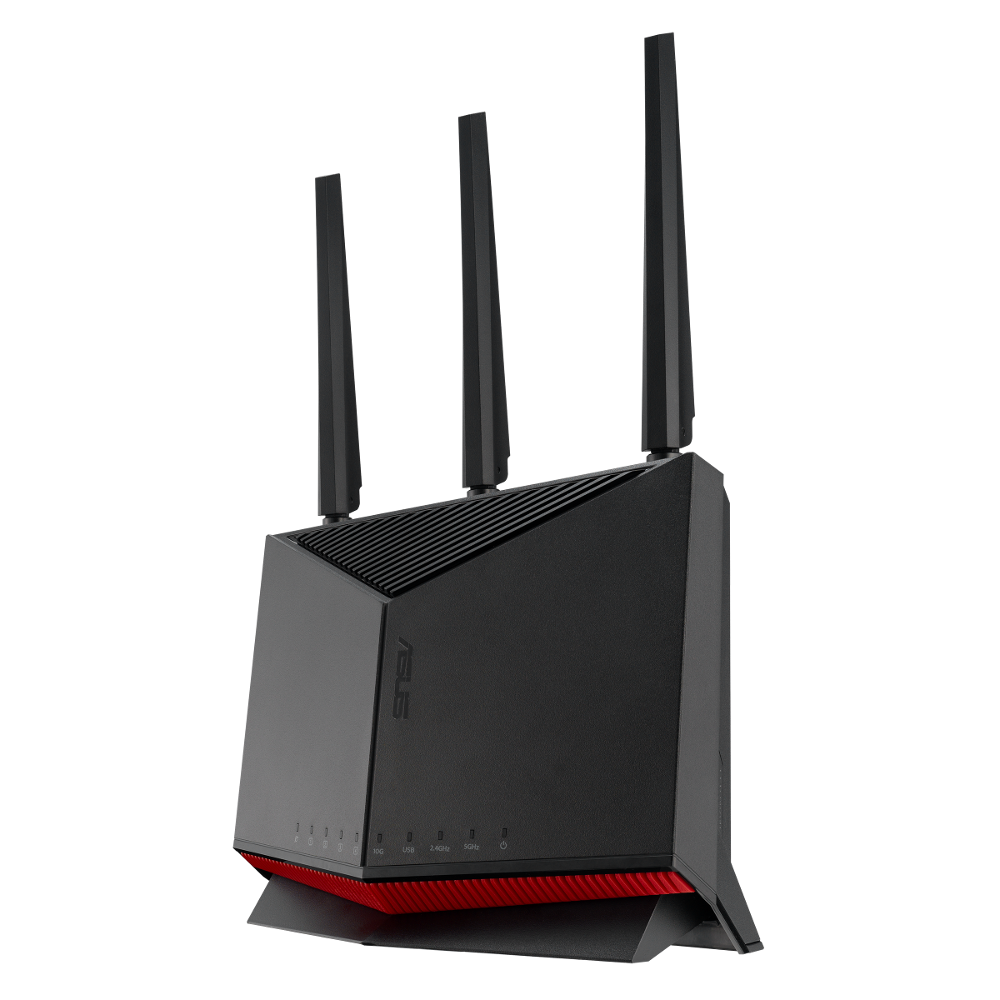

Antena:
|
Tri vanjske antene
Jedna unutarnja antena
|
|
Mod rada:
|
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
|
|
Prijenos podataka:
|
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
|
|
Radna frekvencija:
|
2.4 GHz
5 GHz
|
|
Karakteristike:
|
Procesor: 2.6GHz quad-core processor
Memorija: 256 MB Flash, 1 GB RAM
|
|
Podešavanje i upravljanje:
|
WEB: ASUSWRT
APP: ASUS Router APP
|
|
Sigurnost:
|
AiProtection
VPN
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System i OWE
WPS
Lets Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|
Napajanje:
|
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 5 A current ; 19.5 V with max. 2.31 A current
|
|
Wireless karakteristike:
|
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
|
Dimenzije i masa:
|
235 x 90 x 316 mm
854 g
|
|
Ostalo:
|
Tipke: WPS Button, Reset Button, Power Switch, LED on/off Button
|
|
LED indikatori:
|
WAN x1
10G Port x1
LAN x4
USB x1
2.4GHz x1
5GHz x1
Power x1
|
|
VPN:
|
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
|
|
WAN:
|
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
|
|
LAN:
|
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
|
|
USB:
|
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
|
Napomena:
|
Više detalja o proizvodu možete pogledati ovdje.
|
