| Tehničke karakteristike |
|
|
Model:
|
TUF-BE3600
|
|
Priključci:
|
RJ45 for 2.5 Gigabits BaseT for WAN x 1
RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
|
|
Standard:
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
|
|
Antena:
|
Četiri vanjske antene
|
|
Mod rada:
|
Wireless router mode
Access point mode
Media bridge mode
|
|
Prijenos podataka:
|
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
|
|
Radna frekvencija:
|
2.4GHz / 5GHz
2.4 GHz
5 GHz
|
|
Karakteristike:
|
Procesor: 2.0 GHz quad-core
Memorija: 256 MB Flash, 1 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160 MHz bandwidth
|
|
Podešavanje i upravljanje:
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
|
|
Sigurnost:
|
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Lets Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall:
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|
Napajanje:
|
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
|
|
Dimenzije i masa:
|
274 x 168 x 205 mm
561 g
|
|
Tipke:
|
WPS Button, Reset Button, Power Button
|
|
LED indikatori:
|
Power
WAN
LAN
2.4GHz WiFi
5GHz WiFi
|
|
Sadržaj pakiranja:
|

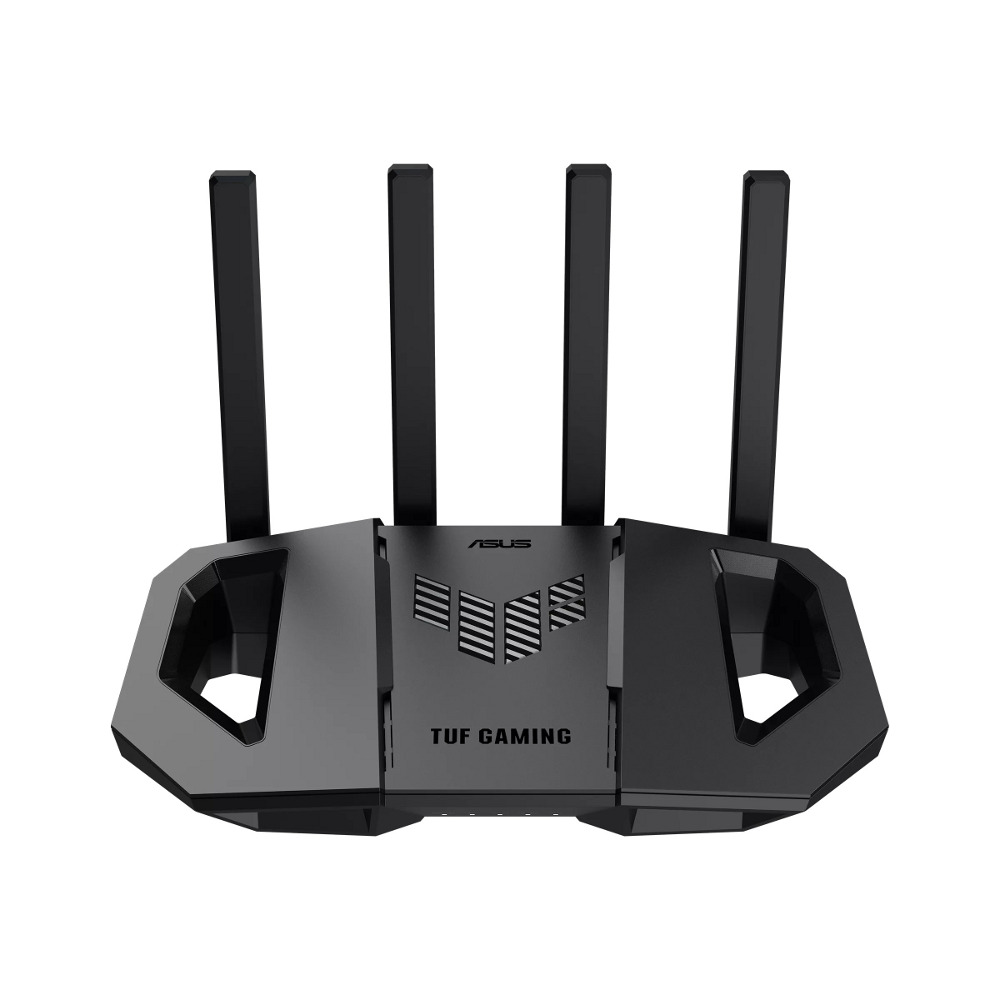

TUF Gaming BE3600 Dual Band WiFi 7 router
Kabel RJ-45
Adapter za napajanje
|
|
AiProtection:
|
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking
|
|
VPN:
|
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
|
|
WAN:
|
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
|
|
LAN:
|
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
|
|
USB:
|
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
|
Napomena:
|
